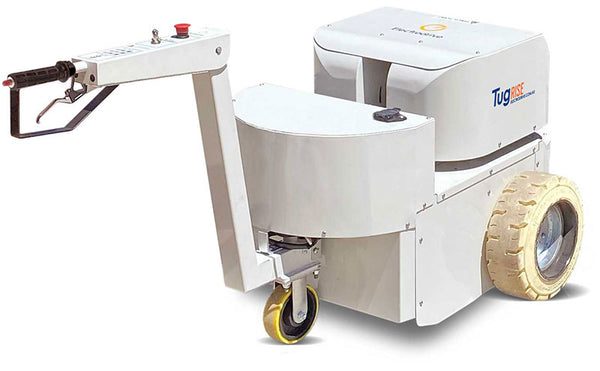

Tug Rise Pedestrian Powered Tug Capacity 1,000Kg

Description :-

Tow up to 1T on 15° ramps or 5T on flat ground.

Electric Tow Tug | Rise Pedestrian Tug

Tow heavy bins up ramps using the Tug Rise

The all new Tug Rise battery operated electric tug has been specially designed to tow on steep slopes or ramps of 15 degrees.

Safely tow up to 1,000 kg up driveway ramps (on a 15 degree ramp or incline) or tow up to 5,000 kg on a flat surface. (Unlike the Tug Axis and Tug Tough which are rated for 6 degree ramps, the Tug Rise is rated for extreme driveway ramps of up to 15 degrees.)

Suitable for moving 660 litre and 1100 litre bins up and down ramps, universal towing devices are also available for 660 and 1100 litre bins. We can also supply directional lock mechanisms for swivel castors to help control the steering of your bins.

As with all the electric tugs in our range, the Tug Rise is designed to improve safety and efficiency, while reducing the risk of accidents that can occur when manually moving very heavy loads.

Typical Applications:-

Suitable for moving heavy bins and trolleys on sloped driveways and ramps, around high-rise buildings/apartment basements, or around caravan parks.

Features at a glance:-
Tow up to 1 tonne on a 15º incline.
Tow up to 5 tonne on flat surface.
Can tow 600 and 1100 litre bins.
Ergonomic design and folding tiller handle.

Specifications:-

Load capacity	Tow up to one tonne on a 15° incline. Tow up to 5,000 kg on flat surfaces.
Max. speed	Up to 3 km per hour.
Speed mode	Three speed control with forward, reverse and emergency stop.
Usability	Simple to use, no driver’s licence required. Quiet, smooth operation. Zero emissions. Turret with turret lock for easy reversing. Heavy duty high-traction wheels. Three wheels for maximum stability. Battery operated and rechargeable. Key on/off switch. Ergonomic design with folding tiller handle. Park brake release—to enable manual operation in the event of a flat battery. Low maintenance.
Hitching	Wide variety of hitches available for easy attachment to trolleys. Universal towing device to suit 660 litre and 1100 litre bins available.
Country of origin	Designed and manufactured in Australia.
Safety features	Emergency stop button. Emergency back-off button. Electromechanical park brake.
Warranty	Comprehensive 12-month warranty. Six month warranty on battery and charger.
Service	Training and servicing programs are available.
Battery	Two 12V 100Ah MK-gel batteries (deep cycle, long-lasting, maintenance-free) with 24V smart charger.
Dimensions (L/W/H)	1800/902/894 mm (approx.)

Hitches for towing 660 and 1100 litre bins

For more information on towing 660 litre and 1100 litre bins.

Hitches:-

Pin hitch (19 mm) :- $ 415+GST
Pin hitch (29 mm) standard for 660/1100L bins :- $470+GST
Auto-latching hitch :- $ 1,110+GST
Heavy duty clamp hitch:- $ 800+GST
