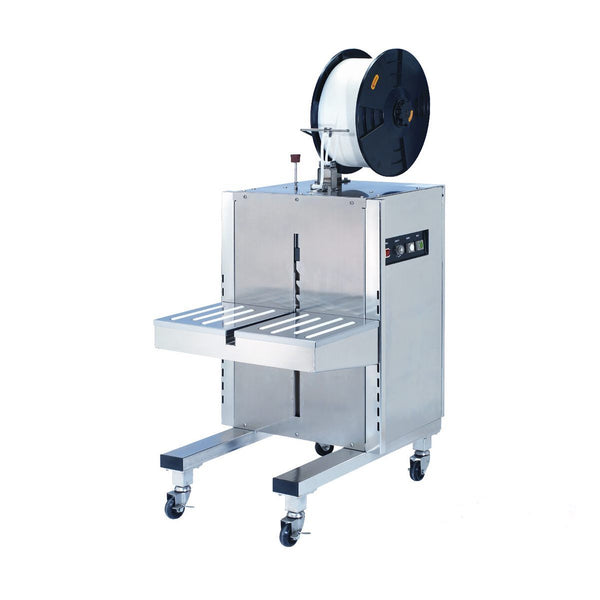

Semi Auto Stainless Steel Side Action Strapping Machine TMS300SA

Description :-

The TMS-300SA is a side-seal, semi-auto strapping machine. The strapping head is mounted on the side of the machine frame to protect it from dust and water which means it is great for dusty, moist, or harsh working environments such as meat, fish, poultry, and agricultural processing plants.

Pacmasta Semi-Auto Strapping Machine-Side Action - Stainless Steel .

Features:-

Portability

This machine is compact and lightweight, enabling easy transportation, and only requires a small space for installation.

Single Motor Operation

A single motor powers the machine. Stable operation is assured even if the voltage drops.

Easy Adjustment

Adjustment for use of any strap in a width up to 15.5 mm can be made by slackening off only four screws.

No Strap Damage

The feed system, strap tensioning device, and cams are designed to eliminate splitting, bending, and scratching.

Simple Operation

The free end of the strap appears on the table which can be placed around this article by hand for strapping.

Technical Data:-

Strap Width	Strap Tension	Speed/Minute (60Hz)	Net Weight	Electrical Requirements
6, 9, 12, 15.5 mm adjustable	15 kg to 45 kg	0.55mm-0.75mm	125 kg	110V, 220V, 230V, 50/60Hz 1PH

Downloads

TMS300SAP Brochure
