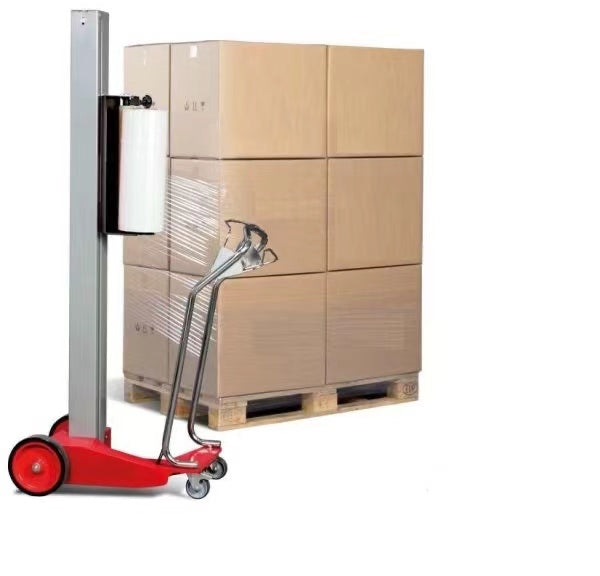

Manual Mobile Stretch Wrapping Machine Orbitwrap

Description :-

The OR-100MWis a mobile Mechanical Friction Brake pallet wrapper, and is simple and easy to use. This machine can dramatically increase efficiency and profitability through lower film cost per load compared to manual (hand) stretch wrapping.

The first machine for wrapping palletized loads of any shape and weight with wrap film without the use of electrical parts.

Easy to manoeuvre and move around inside the warehouse.

Orbitwrap Manual Mobile Wrapper 2.0M Wrap Height

Minimum space requirements

Pallet Wrapper Features:-

Mechanically adjustable film wrap tension (ideal for use with prestretched films)
Film tensioning with mechanical brake film carriage
Up and down movement of the reel-holder trolley by means of chain with gear system
The film carriage is manually moved up and down using levers to suit the required wrap.
Replaces manual wrapping at an affordable price

Pallet Wrapper Specifications:-

Max height of Wrapping: 2000mm
Real size (outer diameter): 75mm to 250mm
Reel weight: 2.5kg to 16 kg
Minimum Pallet size: 650 x 400mm
Standard pallet height: 2000mm (with mast 1900mm)

Downloads:-

OR-100MW Orbitwrap Brochure
