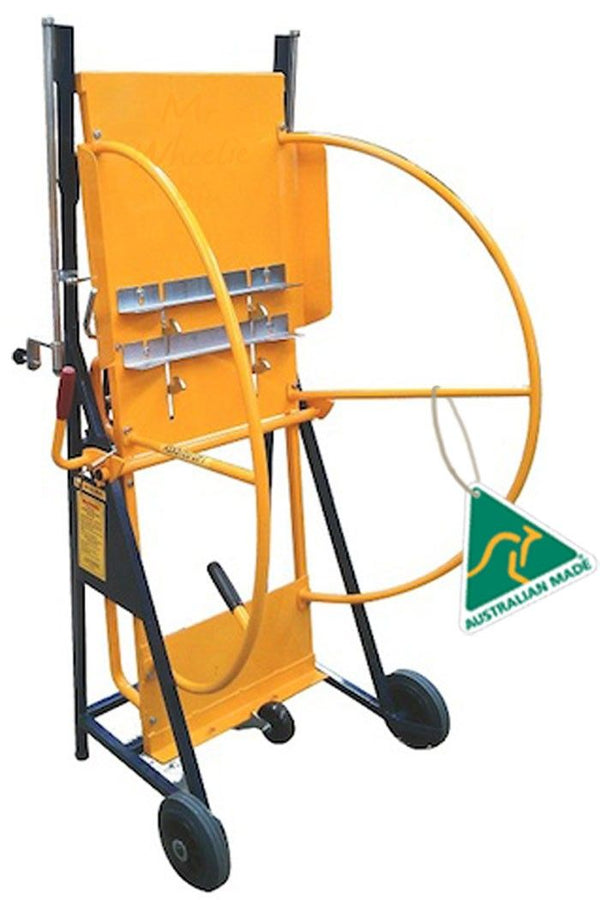

Manual Bin Lifter 30kg Capacity lifting 1420mm

Warranty:- 1Year

Description:-

Made and Built-in Australia

A manually operated bin lifter that aids in the lifting and tipping of wheelie bins―weighing up to 30 kg―into steel skip bins.

The lifter is a manually operated wheelie bin lifter that aids in the lifting and emptying of wheelie bins into dumpster bins. This assistance is given by way of gas struts which are fitted to the unit. Designed to lift 30kg, the lifter is perfect for retail outlets, small offices, schools and factories that dispose of paper and general waste.

The lifter wheelie bin tipper is fitted with gas struts which assist with the lifting of the bin to the tipping height.

Once the bin is empty, the operator simply pulls down on the handle to return the wheelie bin to its lowered position ready to disengage from the tipper.
This model is ideal where only several lifts per day are required. The lifting action is a “full swing” tip operation which enables the unit to be very compact.

The assisted lift and slow-release gas-struts lift bins safely, while protecting the user from costly back injuries associated with lifting heavy loads above shoulder height.

Features at a glance

Full swing

Highest tip point: 2850 mm

Lifting capacity of 30 kg

Suitable for two lifts per person, per day.

Features:-

It is ideal for waste management processes in homes or small offices.
Suitable for small offices, retail outlets and factories.
This bin lifter is a manually operated bin lifter that aids in the lifting and emptying of wheelie bins into dumper bins using gas struts.
Designed to lift up to 30kg at a time, this lifter is perfect for retail outlets, small offices and factories that dispose of paper and general waste and are required to empty their wheelie bins once or twice a day.
Lift Capacity: 30kgs
Suits Bin Types: 120L and 240L wheelie bins
Manual operation (assisted lift)
Finish: Power-coated
Dimensions: 681x600x1600mm (WxDxH)

Specifications:-

Product Code	NT30120
Lifting capacity	30 kg
Lifting mechanism	Full-swing
Recommended lifts (per person per day)	Two
Bin compatibility	Wheelie bin: 120 and 240 litre Skip bin: Up to 1500 mm
Operation	Method: Manual-assisted lift operation with slow release gas struts. Time: 45 seconds.
Highest tip point	2850 mm
Fits through internal doorways	Yes
Country of origin	Designed and manufactured in Australia.
Safety features	Skip bin hooks: Secures the bin lifter to a steel dumper bin, and only operates when secured. Padlock: The unit can only operate when unlocked. Slow-release gas-struts: Ensures the bin won't suddenly drop and potentially cause injury. Base cradle hook: The unit can only operate when the bin is resting on the base cradle hook.
Warranty	Comprehensive 12-month warranty.
Dimensions (L/W/H)	900/800/1420 mm
