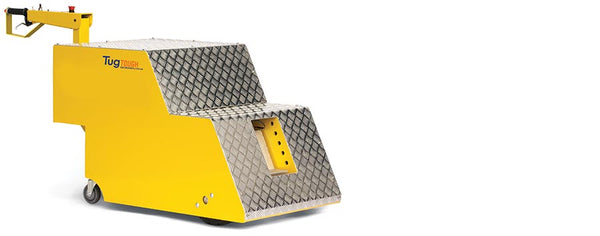

Industrial Powered Tough Tug & Tug Lifter 10,000kg Tow Capacity

Description :-

Heavy duty electric tug for towing up to 10 tonnes

Our Tug Tough pedestrian operated electric tugs are the perfect heavy duty workhorse for loads up to 10 tonnes.

The Tug Tough utilises a powerful 48 V drive system to allow a single operator to hitch to and move big loads. The Tug Tough can be fitted with an optional hydraulic lifting hitch available for either capacity.

Just like the other tugs in the family, the Tug Tough allows the operator to walk in front of the heavy load, allowing maximum forward vision and eliminating the possibility of accidents when negotiating turns. The Tug Tough converts a difficult and often dangerous operation into an easy to move motorised assembly.

The Tug Tough incorporates all of the features you would expect on an our product and is designed to improve safety and efficiency, whilst reducing the risk of accidents that can occur when manually moving extremely heavy loads.

Typical Applications:-

Towing heavy vehicle for maintenance.
Vehicle tugger: Pulling buses or trucks through a production line.
Suitable for airports: towing airplanes/aircraft in and out of hangars.
Heavy Duty Tug can be used safely, by a single operator to move heavy loads
Uses powerful 48 V drive system
10 tonne capacity on flat ground with reduced towing capacity on ramp up to 8 degrees
Can be ordered with optional 5 Tonne Lifter
Operator walks in front, using Tiller Control
Maximum forward vision eliminates collisions and accidents when turning
Easy attachment to trolleys with manual or automated hitches available
DC Geared motor
High capacity programmable controller
Battery Operated and rechargeable
Forward and Reverse drive controls
Variable speed control
Automatic electromagnetic park brakes
Emergency brake release
Quiet, smooth operation
Zero emissions
Low maintenance
Simple to use, No licence needed
Training and servicing programmes available
Comprehensive 12 month warranty on Machines with 6 month warranty on Batteries and Charger
Designed and Manufactured in Australia
Wide variety of Manual or Automated Hitches - Sold Separately - P.O.A
Optional Extras: Amber Strobe Light and Beeping Reversing Light - Sold Separately.

Extra Hitch Accessories :-

Pin hitch (32 mm) :- $415+GST
Pin hitch (50 mm):- $465+GST
Hook hitch :-$540+GST
Tow ball hitch :-$925+GST

Specifications:-

Tow capacity	10,000 kg
Max. speed	Up to 2.5 km per hour.
Speed mode	Three speed control with forward, reverse and emergency stop.
Usability	Heavy duty construction. Battery operated and rechargeable. Ergonomic design. Simple to use. Quiet, smooth operation. Zero emissions.
Hitching	EDHT10TPIN (pin hitch) EDHT10THOOK (hook hitch) A variety of hitches are available for easy attachment.
Country of origin	Designed and manufactured in Australia.
Safety features	Emergency stop button. Emergency back-off button.
Warranty	Comprehensive 12-month warranty. Six month warranty on battery and charger.
Service	Training and servicing programs are available.
Battery	Four 12V 70Ah MK-gel batteries with a 48V smart charger. (Upgrade option: Four 12V 100Ah MK-gel batteries.)
Dimensions (L/W/H)	1912/650/910 mm
