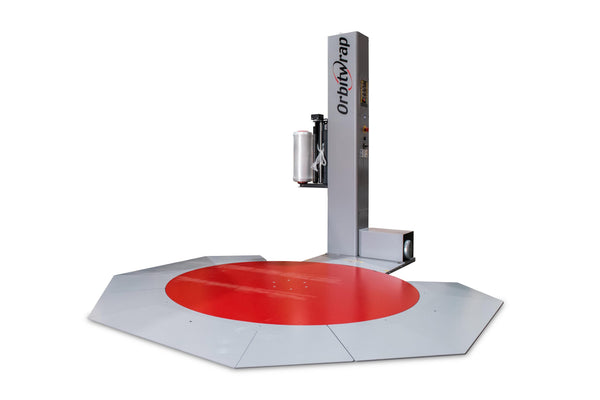

Electromagnetic Stretch Wrapping Machine OR4000L

Description :-

The OR-4000L is a low maintenance, easy to operate Pallet Wrapping Machine. The OR-4000L is equipped with an electromagnetic force to load brake system. These machines have an easy-to-read operating panel with 3 + 1 programs. The OR-4000L includes a low-profile turntable, which allows easy loading by pallet trucks.

Orbitwrap Low Table Stretch Wrapper 2.2M Wrap Height - 1.65M Table - Electronic Tension Contr .

Features:-

Electromagnetic brake Film carriage

Variable film carriage and turntable speeds

Low profile turntable 26mm

Photocell eye for automatic height detection

Automatic and Manual wrapping programs

Soft-start and stop turntable drive

Heavy-duty industrial chain driven turntable

Safety crush prevention device fitted to carriage

12 month warranty

Stretch-film cutter

Available Options:-

Higher wrapping height - 2500,2700,3000,3300,3700mm.

Black Photocell eye to detect black or dark products

Technical Options:-

MAX HEIGHT OF WRAPPING 2200MM

MAX PALLET SIZE 1200MM X 1200MM

TURNTABLE DIAMETER 1650MM

TURNTABLE SPEED 5-12RPM

PROGRAMS 3 + 1

LOAD CAPACITY 1200KG

POWER SUPPLY 240V SINGLE PHASE POWER

WARRANTY 1 YEAR

MACHINE WEIGHT 550 KG

Downloads

OR-4000LP Orbitwrap Brochure
