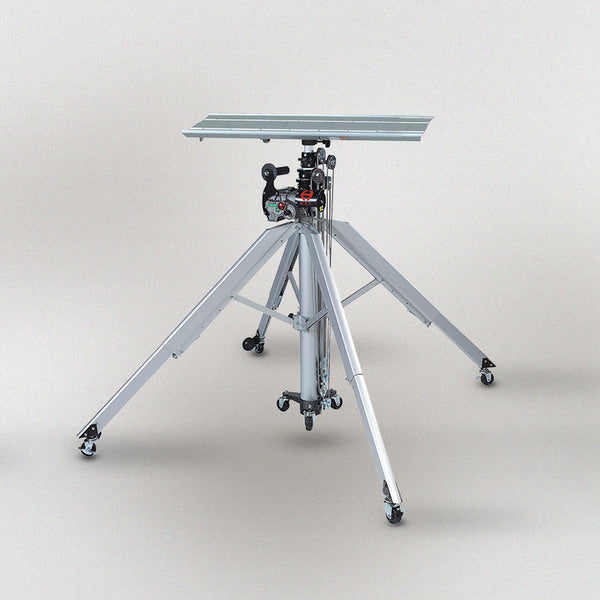

Portable Electric Telescopic Lifter 3.3m & 4.9m High Lift

Warranty:- 1Year

Description:-

The CM-340 are the most compact electric lifter in its class. It quickly and easily turns a 3 person lifting job into a single person job giving your company an edge over its competitors.

Adjustable legs enable the CM340,CM369, CM439 and CM520 to work on uneven surfaces and fold compactly.

The CM340,CM439 is ideal for domestic and smaller commercial operators. Most smaller organisations begin with a CM340,CM439 as it covers a majority of needs. If work demands increase or the work requires, a CM520 is purchased as the second unit.

Note:-We offer Free shipping Australia Wide T&C applied.

Manual Override

Switch to manual operation at locations without power or in case of a power failure.

Use the included handle as shown
OR - use a cordless drill with a 17mm socket
Engage the Emergency Stop to switch to manual control!

Remove the Handle to manually operate the lifter when now power is not available.

Emergency Stop:

Safety
Switches to manual control

Up/Down Controller:-

Controller:

Easy pistol-grip hold
Variable speed trigger - exact height positioning with precise control of speed
Belt clip for convenience
Up/Down level
Robust casing

Integrated Level

Integrated level on the mast helps ensure the mast is vertical before operation.

Adjust the legs independantly for uneven surfaces to make sure the mast is vertical!

Compact and easily transported:-

The CM340,CM439 and CM520 is easily packed and carried to/from site.

One bag for the lifter
One bag for the tray

Features:-

Telescoping Legs – For uneven surfaces, stairways, slopes etc.
Level in Mast – Ensure mast is vertical before operation.
Telescoping Mast – Compact, Strong and Light – made with robust, specially heat-treated aluminium.
Electric Motor – Variable speed controller with long cable and belt clip.
Manual Controls – lf no mains power available, use electric drill or handle to wind lifter.
Emergency Stop Button – Also used to switch to manual control.
Setup in 30 seconds – No tools required.
Overload Cut-Out – Fitted with overload clutch for safety.
Wheels for Mobility – Included with CM520 – optional accessory with CM340.
Retractable Lea – Lift loads adjacent to wall.
Fine Positioning – Align load precisely with variable speed controller.

Optional Adapters:-

The portable lifter range (CM340, CM520 and CA400) have optional-interchangeable adapters.

Optional Adapter	Compatible with
Optional Adapter	Compatible with	Garage Doors Awnings Building
	Glass Solar Panels Sheet Metal
	Plasterboard Other sheeting spec of Plasterboard when attached to CM lifters:-
	Optional Wheel kit for legs For CM340 only.The other models comes with wheels.The CM369 comes with 2 wheels.

Specifications:-

Model	CM340	CM369	CM439	CM520
Load Capacity	130kg/3m ,120kg/3.3m	130kg/3m 120Kg/3M	130kg up to 3m 120kg above 3m	140kg/3m, 130kg/4m, 90kg/4.9m
Lifting Height	3.3m	3.72	4.27mm	4.9m
Basic Height	970mm	1050mm	1150mm	1190mm
Platform Weight	5.3kg	4.8kg	5.3kg	5.3kg
Lifter Weight	21kg	24.5kg	26kg	38kg
operating Dimensions	1x1.1m	1.8x1.13 m	1.4x1.4m	1.5x1.4m
Stowed Dimensions	300x300 mm	300x250mm	350x350mm	380x380 mm
