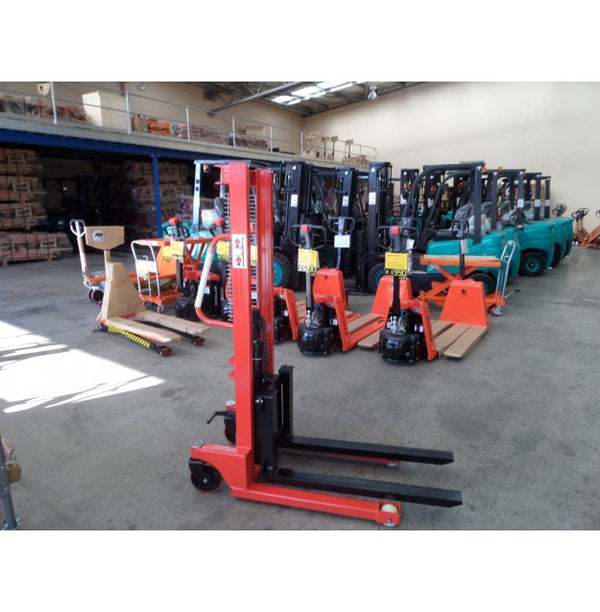

500Kg Mini Manual Pallet Stacker Lifting Height 1200mm

Warranty:- 1Year

Description:-

These manual fork stackers are a very heavy duty construction and are an economical alternative to forklifts.Manual hydraulic lift via pallet truck style handle or foot pedal.

Note:- This Stacker lifter is available at our NSW Store, please contact us for shipping quote or pickup.

Features:-

Up to 500kgs Capacity – 1200mm Lift height – Capacity at 1.2m is 300kg
Manual Push, Pull, Lift and Drop
Hand or foot pedal pump up
Heavy duty steel frame
Suitable for lifting small equipment, machinery, safes, cartons etc

Note:-This unit’s legs are too big to enter closed pallet (timber on top and bottom of pallet)to lift from the ground, pallet must be one faced (open pallet)

Specifications:-

Fork Length 760mm – fork width 80mm
Min-Max Fork Height: 100 -1200mm
Min-Max Forks Width: 180 – 360mm
Clearance between forks: 0 – 180mm
Clearance between legs: 405mm
Wheels: front – 80x 50mm , rear – 180x50mm
Overall dimensions 125(L) x 58.5(W) x 165(H) cm – weight 122kg
Shipping dimensions – Skid – 155 x 100 x 180 cm – weight 148kg
