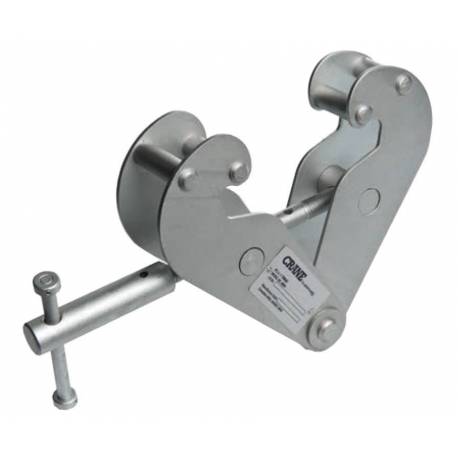

Beam Clamps

Description:-

Crane beam clamps are designed to work hand-in-hand with our chain and lever blocks.Once again we have used our industry-leading galvanising finish which extends to the threads ensuring free movement well into the future.

Specifications:-

MODEL	CB01	CB02	CB03	CB04
Rated Capacity (kg Working Load Limit)	1000kg	2000kg	3000kg	4000kg
I beam width range	70mm - 245mm	70mm - 245mm	70mm - 355mm	70mm - 355m
Dimension A	230mm	230mm	320mm	320mm
Dimension B	180mm - 335mm	180mm - 335mm	230mm - 455mm	230mm - 455mm
Dimension C	78mm	85mm	115mm	122mm
Dimension D (diameter)	20mm	20mm	24mm	30mm
Dimension E	220mm	220mm	265mm	265mm
Dimension F	130mm - 160mm	130mm - 160mm	190mm - 240mm	190mm - 240mm
Net Weight	4kg	5kg	9kg	11kg
