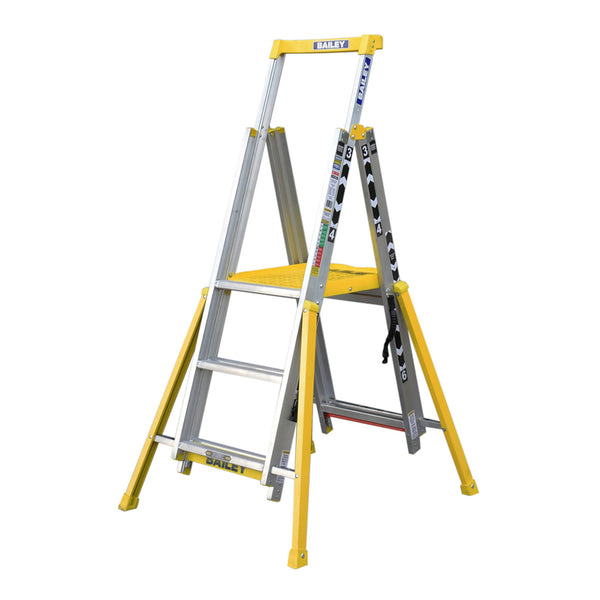

Bailey 170KG Adjustable Aluminium Platform Step Ladder

The new Bailey Adjustable Height Platform Stepladder is four (4) platform stepladders in one neat and easy use compact design to increase job site safety and productivity. The Adjustable Height Platform Stepladder quickly converts from a 3 step platform stepladder to a 4, 5, or 6 step platform stepladder using a single handed operation.

The innovative design allows the back legs to be adjusted in 50mm increments allowing the ladder to be used safely on a staircase or sloping ground. Add the optional safety gate and you have a secure, safe, and stable work platform that provides a compliant working at heights platform. Made to Australian Standards 1892. This is possibly the only platform stepladder you will need on the job site or at home to provide variable height access.

Features:-

Can be converted from a 3 step platform ladder to a 4, 5, or 6 step ladder providing a maximum reach height of 3.71m
The single-handed self-locking mechanism allows the user to adjust the height of the ladder quickly and easily improving productivity on site
The back legs can be adjusted at 50mm increments to allow the ladder to be safely leveled on stairways or sloping surfaces
The outriggers that are extended before first use provide a very stable work platform that inspires confidence and job site safety
At 19kg, it is the lightest 4 height adjustable platform stepladder in the Australian Market
Indicators on the side of the ladder stiles take the guess work out of converting the ladder into the four different heights
A massive 170kg load rating and industrial duty rating make the ladder suitable for use on commercial work sites
Large platform standing area (420mm X 500mm) for all day standing comfort
Multi-function handrail for tool and equipment storage
Anti-slip PVC boots for added stability
Safety Gate model FS13952 is available as an accessory
Made to Australian Standards AS1892

NOTES:-The product is shipped and displayed on a shelf with outriggers in the closed position. On first use, the user pulls out the outriggers and they lock permanently into position.

Specifications :-

Type	Multi-Step Platform Stepladder
Material	Aluminium
Load Rate (kg)	170.0
Australian Standards	AS1892
Style	Platform Stepladder
Size	0.85
EAN	9312097065857

Dimensions :-

Ladder Width (m)	0.85
Platform Height (m)	0.85
Approx. Product Width (m)	0.90
Approx. Product Height (m)	1.758-2.614
Approx. Product Depth (m)	1.037-1.544
Approx. Product Weight (kg)	18.8
Fully Open Dimensions H x W x D (mm)	2610 H X 900 W X 1540 D
Nominal Size	3 Step - 1860mm 4 Step - 2160mm 5 Step - 2460mm 6 Step - 2760mm
Maximum Standing Height	3 Step - 850mm 4 Step - 1140mm 5 Step - 1420mm 6 Step - 1710mm
Maximum Reach Height	3 Step - 2850mm 4 Step - 3140mm 5 Step - 3420mm 6 Step - 3710mm
Tray Or Work Platform	Yes
Foldable	Yes
