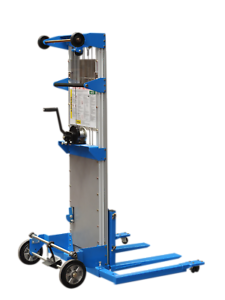

Aluminium Hand Stacker Adjustable legs Winch Lifter Jack Capacity 159Kg

Warranty:-1year

Description:-

The trolley is perfect for lifting and transporting heavy loads with a maximum load capacity up to 159kg .These lifters are great for assisting in the lifting, positioning and installation of goods up to 3600mm in height.

Straddle Base:-Adjustable base legs straddle loads or fixed objects up to 91 cm (36 in) wide. Perfect for lifting small pallets, appliances and other bulky objects.

They are a range of robust, versatile Hydraulic manual drive/ lift stackers.

Features:-

-Easy Disassembling and assembling.
-Light Aluminium mast, easy for handling.
-Lift by winch, no any hydraulic problem.

-These aluminium winch lifters are great for assisting in the lifting, positioning and installation of goods up to 3600mm in height.

-All units fold for easy storage and transport,Manual hand winch control with automatic braking action
-Foot pedal brake
-Straddle legs, make more stable.
-Fits through standard doorways
-Walk behind manual push to moving around
-Can fit into smaller spaces when disassembled.
-The best brake function with special design is obvious.
-Wheels on the mast also allow it to be used as a trolley.

Specifications:-

Model	STD159W
Capacity	159Kg
Lift height (fork up)	3600mm
Lift height (fork down)	3000mm
Fork length	570mm
Single fork width	105mm
Outside width of 2 forks	530mm
Inside width of 2 forks	330mm
Load Center	254mm
Overall Length	1100mm
Overall Width	736mm
Lowest-Highest Mast Height	2030mm-3600mm
Minimum Fork Height	51mm
Adjustable Legs Outside Width	740mm - 1080mm
Adjustable Legs Inner Width	560mm - 900mm
Single Leg Width	105mm
Unit weight	82kg
