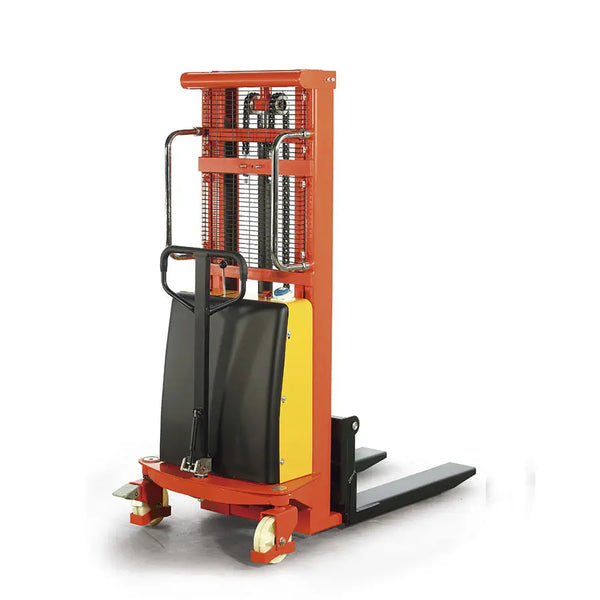

1000Kg Semi Auto Electric Fork Standard Leg Stacker 3.0m Lift

Description:-

with capacities 1.0T

These semi auto fork stackers are the ideal machine for any warehouse. They are manual push and electric up/down with handle-chain assisted steering which greatly reduces operator labour intensity. This unit legs will not get inside closed pallets and will not go over the timber under pallet.

The Semi Electric Pallet Stacker has been engineered to be both powerful and flexible to meet the requirements of many demanding applications. Whether it’s supermarket work, delivery service, stock replenishment or heavy manufacturing, it has the strength and durability to minimise your total cost of ownership.

With electric lift and manual push, semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking.

Using this lifters is safe and efficient in factories, warehouses, and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using this is more flexible, silent and environmental.

This model is used for open pallet, NOT for Australia standard pallet (CHEP).

Specifications :-

Load Capacity: 1000kg
Load Capacity on Max Height: 600kg
Max Lifting Height: 3000mm
Load Center Distance: 600mm
Service Weight: 380kg
Fork Length: 1150mm
Single Fork Width: 150mm
Overall Fork Width: Standard 640mm
Lowered Fork Height: 85mm
Fixed Leg Length: 875mm
Single Fixed Leg Width: 100mm
Inner width of two fixed legs: 390mm
Outside width of two fixed legs: 590mm
Overall Length: 1800 (1100Fork)
Overall Width: 760mm
Extended Mast Height: 3567mm
Lowered Mast Height: 2077mm
Wheels Types: NL
Front Wheel Size, number: 74x70,2
Rear Wheel Size, number: 180x50,2
Lift Motor Rating: 1.5kw
Lift Motor: DC 12V
The Charger: 12V/20A
Battery Voltage/Nominal Capacity: 12V/120AH
Brand New, including battery and charger.
