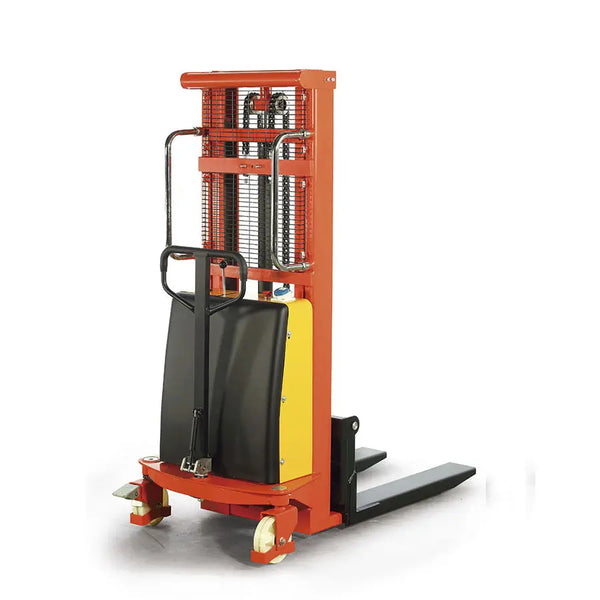

1000Kg Semi Auto Electric Fork Standard Leg Stacker 2.5m Lift

Description:-

with capacities 1.0T

These semi auto fork stackers are the ideal machine for any warehouse. They are manual push and electric up/down with handle-chain assisted steering which greatly reduces operator labour intensity. This unit legs will not get inside closed pallets and will not go over the timber under pallet.

The Semi Electric Pallet Stacker has been engineered to be both powerful and flexible to meet the requirements of many demanding applications. Whether it’s supermarket work, delivery service, stock replenishment or heavy manufacturing, it has the strength and durability to minimise your total cost of ownership.

With electric lift and manual push, semi-electric pallet stacker is easy to control, and environmental efficiency, which is widely used in overhead cargo and pallet moving and stacking.

Using this lifters is safe and efficient in factories, warehouses, and logistics centers. While in some narrow passage, floors, and other high rack warehouses, using this is more flexible, silent and environmental.

This model is used for open pallet, NOT for Australia standard pallet (CHEP).

Specifications :-

Load Capacity: 1000kg

Load Capacity on max height: 700kg

Max Lifting Height: 2500mm

Load Center Distance: 600mm

Service Weight: 374kg

Fork Length: 1150mm

Single Fork Width: 150mm

Overall Fork Width: Standard (640mm)

Lowered Fork Height: 85mm

Fixed Leg Length: 875mm

Single Fixed Leg Width: 100mm

Inner width of two fixed legs: 390mm

Outer width of two fixed legs: 590mm

Turning Radius: 1350mm

Overall Length: 1800 (1100Fork)

Overall Width: 760mm

Extended Mast Height: 3067mm

Lowered Mast Height: 1827mm

Wheels Type: NL

Front Wheel Size, number: 74x70, 2

Rear Wheel Size, number: 180x50, 2

Lift Motor Rating: 1.5 kW

Lift Motor: 12V

Charger: 12V/20A

Battery Voltage/ nominal capacity: 12V/120AH

Electric lift and manual push
