10 Tonne Long Telescopic Jib

Warranty:-1Year

Description:-

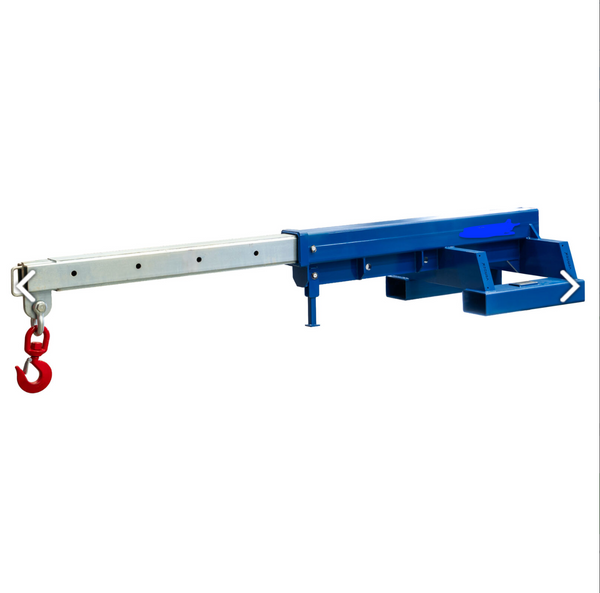

The 10 Tonne Telescopic Forklift Jib is a heavy-duty forklift attachment engineered for demanding material-handling tasks in construction, manufacturing, and logistics environments. Built from powder-coated, zinc-plated steel for durability, it provides secure lifting for loads up to 10 tonnes. Its telescopic design allows it to extend up to 3.6m for increased reach, while wide fork pockets accommodate hydraulic tine positioners for better control. A safety swivel hook, shackle, and chain ensure secure attachment, and its compact closed length enhances ease of handling and storage.

Supports up to 10 tonnes (10,000kg), enabling safe handling of extremely heavy loads on large forklifts

Telescopic extension up to 2000mm provides extra reach for placing materials in hard-to-access areas

Support Stand to keep the Jib level when not being used

Compact 2190mm closed length makes jib easier to manoeuvre, transport, and store when not in use

Wide fork pockets suit most large tines on high tonnage forklifts

Safety chain attachment keeps jib securely fixed to forklift

Specifications:-

High strength swivel lifting and shackle
Powder coated and corrosion-resistant zinc finish makes it suitable for harsh outdoor or industrial conditions, ensuring long service life
Material: Steel
Finish: Powder Coated & Zinc Plated
Working Load Limit: 10,000kg (10T)
HCG: 919mm
Load Centre: 920mm
Jib Length (when closed): 2190mm
Jib Length (when extended): 3560mm
Fork Pocket Centre: 875mm
Fork Pocket Size: 230x114mm
Overall Dimensions (LxWxH): 2190x755x600mm
Unit Weight: 470kg
