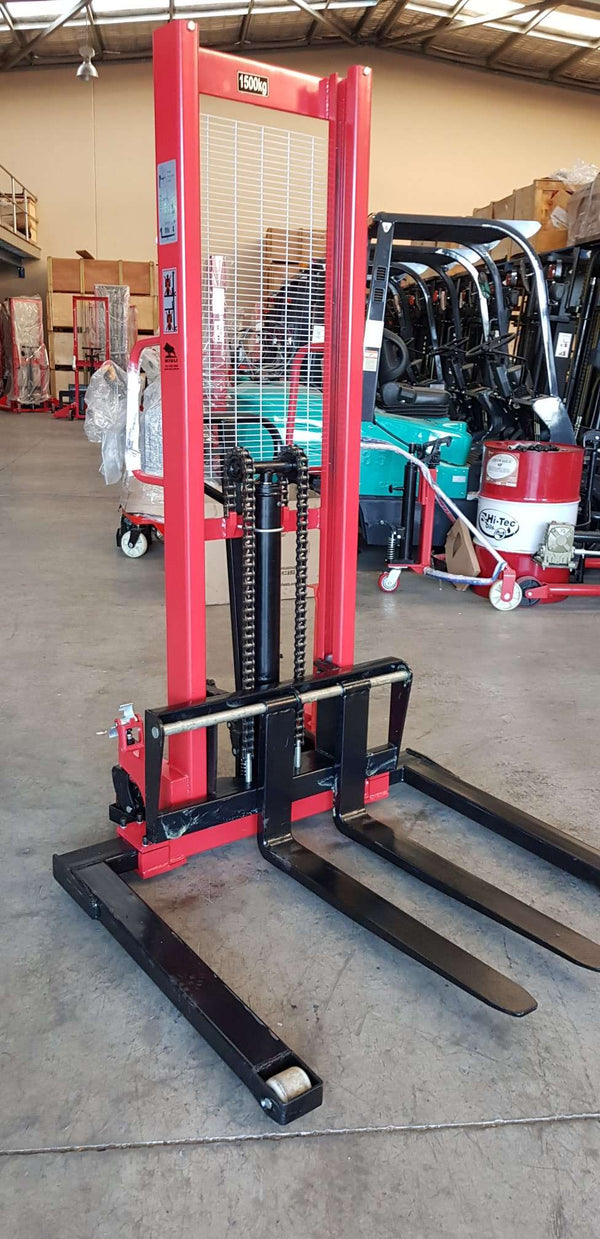

1.5Ton Manual Adjustable Base Straddle Leg Pallet Stacker Lifter 1.6m

Warranty:- 1Year

Description:-

These manual fork stackers are a very heavy duty construction and are an economical alternative to forklifts.Manual hydraulic lift via pallet truck style handle or foot pedal.Lockable wheels are standard on all models.

Note:- This stacker lifter jack is available at our NSW Store, please contact us for shipping quote or pickup.

Features:-

Capacity: 1500kg, Lift Height: 1600mm – Capacity at 1.6m is 1200kg
Manual push, pull, lift and drop
Extra heavy duty steel frame, Chain and Ram
Adjustable base width from Narrow to Straddle
Solid Steel cast forks (tines) for a lift time of work
Suitable for all heavy and light loads
Suitable for lifting Standard and narrow pallets, skids, safes, equipment, boxes, machinery, etc
Economic and mobile work aid – can be used as a pallet jack as well
Hand or foot pedal pump up
Foot operated brake system for extra safety

Specifications:-

Single fork length 900mm, width 100mm, thickness 40mm Solid
Min-Max Fork Height: 100mm-1600mm
Adjustable forks width: 215mm-860mm (Outer forks tips)
Clearance between forks: 15mm- 660mm
Clearance between legs: 895mm – 1220mm
Overall legs width: 1135mm – 1470mm
Wheels: front – 70x70mm , rear – 180x50mm
Overall dimensions 165(L) x 147(W) x 211(H) cm – weight 292kg
Shipping dimensions – Pallet – 140 x 147 x 226 cm – weight 342kg
